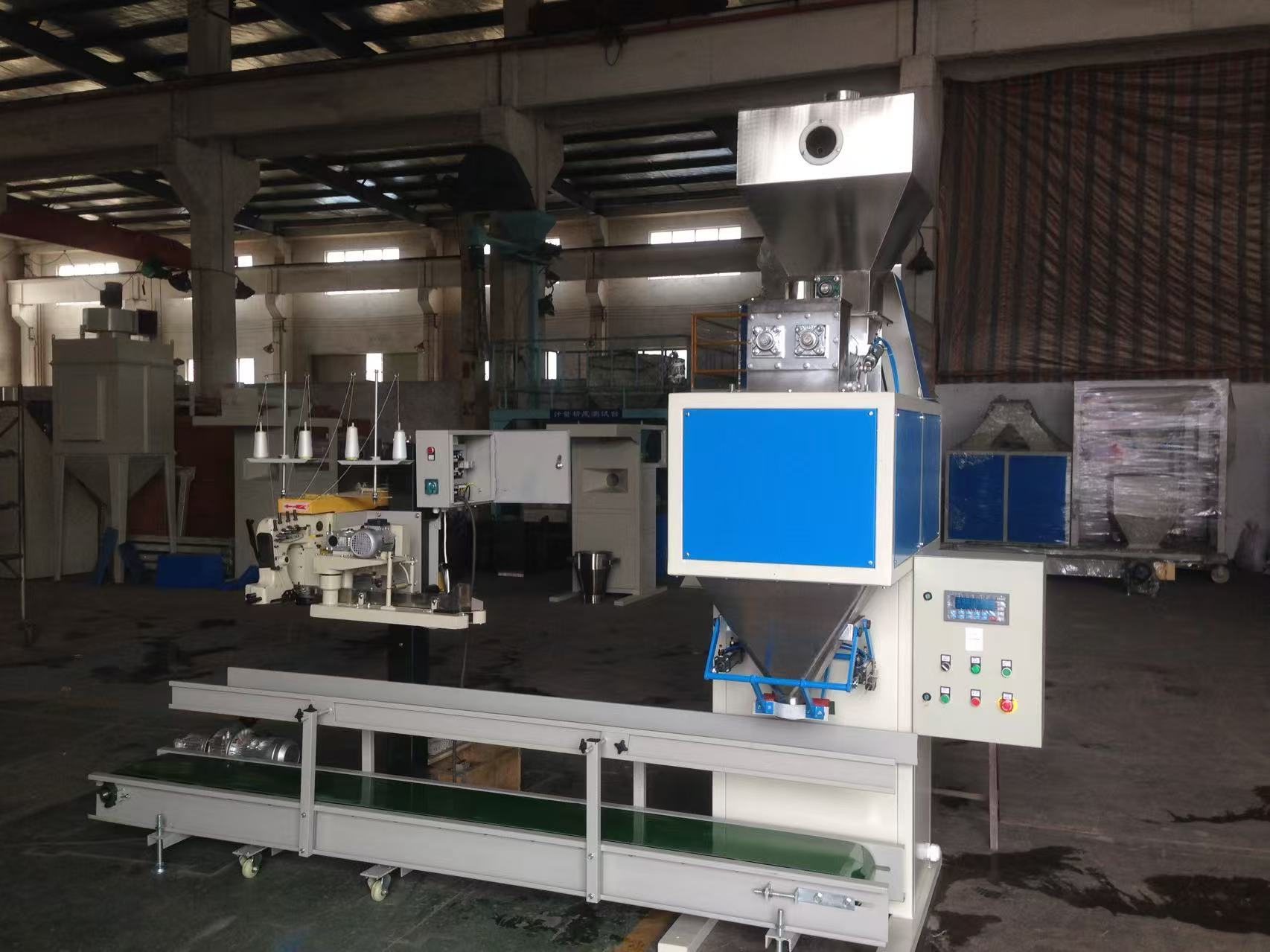

Automatic Bagging Machine
High-efficiency packaging solution

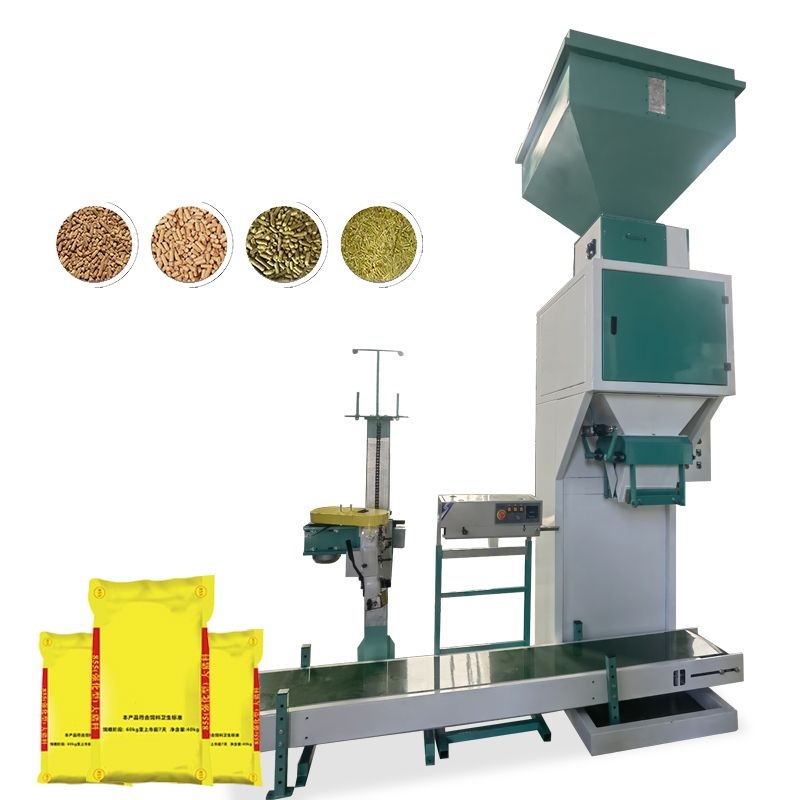

Automatic animal feed pellet packing machine
1: The automatic packe can be compatible with computer packing scale or used alone.
2:High mechanization degree, easy operation and high efficiency.
3 : Adjustable speed of conveyor belt, can operate in positive and negative directions.anti-channeling technology of special material.
4: capable for automatic quantitative batching packing of powder and pellet materials which are non-adhesive and have good flowing
property.
Size information of Automatic Bagging Machine
Model Name | DB-1 | DB-5 | DB-25 | DB-50 | DB-100 |
Packing Range | 0.2-1kg | 1-5kg | 2.5-25kg | 5-50kg | 10-100kg |
Packing Error | 0.2%F.S | 0.2%F.S | 0.1%F.S | 0.1%F.S | 0.1%F.S |
Packing Speed | 300-500bags/h | 300-500bags/h | 300-420bags/h | ≥300bags/h | ≥300bags/h |
Division Value | 2g | 5g | 10g | 20g | 20g |
Power | AC 220V 50HZ | ||||
Air Supply | 0.4-0.8MPa | ||||
Machine Dimension | 1752*620*710(mm) | 1890*620*710(mm) | 2450*650*715(mm) | 2560*650*715(mm) | 960*730*775(mm) |
Actuator | pneumatics | ||||
Accuracy Class | X(0.2)X(0.1) | ||||
